Example

from trieste.acquisition.function import PredictiveVariance, ExpectedImprovement

import numpy as np
from lnl_surrogate.surrogate import train
from scipy.stats import norm
from lnl_surrogate.surrogate.setup_optimizer import McZGrid
from lnl_computer.mock_data import generate_mock_data
from typing import Dict
import matplotlib.pyplot as plt
import os

np.random.seed(0)
OUTDIR = 'outdir'
os.makedirs(OUTDIR, exist_ok=True)

Single Mode Guassian

MINX, MAXX = 0.005, 0.015
MIDX = (MINX + MAXX) / 2
NORM = norm(MIDX, 0.003)


def mock_lnl(*args, **kwargs):
    sf_sample: Dict = kwargs.get('sf_sample')
    sf_sample = np.array(list(sf_sample.values()))
    return NORM.logpdf(sf_sample), 0


def plot_true():
    x = np.linspace(MINX, MAXX, 100).reshape(-1, 1)
    true_y = NORM.logpdf(x) * -1.0
    plt.plot(x, true_y, label='True', color='black')
    plt.xlabel('aSF')
    plt.ylabel('lnL')
    return plt.gcf()


def plot_res(model, data, search_space):
    x = np.linspace(MINX, MAXX, 100).reshape(-1, 1)
    model_y, model_yunc = model.predict(x)
    x_obs = data.query_points
    y_obs = data.observations

    tf_to_np = lambda x: x.numpy().flatten() if hasattr(x, 'numpy') else x
    # make new fig
    plt.figure()
    plot_true()
    plt.plot(x, model_y, label='Model', color="tab:orange")
    plt.scatter(x_obs, y_obs, label='Observed', color='black')
    yup, ydown = tf_to_np(model_y + model_yunc), tf_to_np(model_y - model_yunc)
    plt.fill_between(x.flatten(), yup.flatten(), ydown.flatten(), alpha=0.2, color="tab:orange")
    plt.legend(loc='upper right')
    return plt.gcf()


McZGrid.lnl = mock_lnl
mock_data = generate_mock_data(OUTDIR)

fig = plot_true()
_ = fig.suptitle('True LnL')

## Exploratory Acquisition Function

res = train(
    model_type='gp',
    mcz_obs=mock_data.observations.mcz,
    compas_h5_filename=mock_data.compas_filename,
    acquisition_fns=[PredictiveVariance()],
    params=['aSF'],
    n_init=2,
    n_rounds=10,
    n_pts_per_round=1,
    outdir=f"{OUTDIR}/gp",
    truth=dict(
        aSF=MIDX,
        lnl=mock_lnl(sf_sample={'aSF': MIDX})[0] * -1.0
    ),
    model_plotter=plot_res,
    noise_level=1e-3
)

## Explotative Acquisition Function

res = train(
    model_type='gp',
    mcz_obs=mock_data.observations.mcz,
    compas_h5_filename=mock_data.compas_filename,
    acquisition_fns=[ExpectedImprovement()],
    params=['aSF'],
    n_init=2,
    n_rounds=10,
    n_pts_per_round=1,
    outdir=f"{OUTDIR}/gp",
    truth=dict(
        aSF=MIDX,
        lnl=mock_lnl(sf_sample={'aSF': MIDX})[0] * -1.0
    ),
    model_plotter=plot_res,
    noise_level=1e-3
)

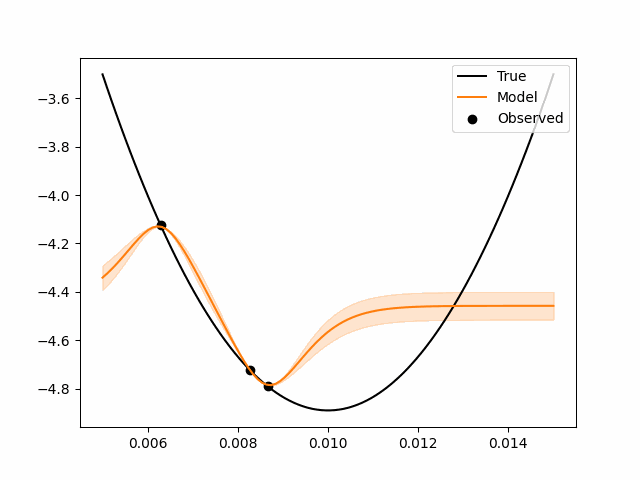

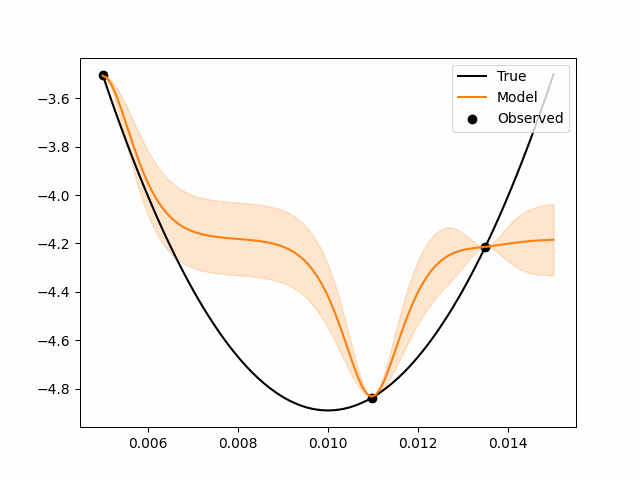

Exploratory Acquisition	Exploitative Acquisition

Bimodal Gaussian

from scipy.stats import gaussian_kde
from scipy.integrate import quad
import numpy as np

MINX, MAXX = 0.005, 0.015
MUS = [0.008, 0.012]
SIGMAS = [0.0009, 0.0005]


def generate_data(mus, sigmas, N: int):
    """Generate some data."""
    data = [np.random.normal(mus[i], sigmas[i], N) for i in range(len(mus))]
    x = np.random.choice([0, 1], N)
    return data[0] * (1 - x) + data[1] * x


class MockLnLFunc():
    def __init__(self):
        np.random.seed(0)
        data = generate_data(MUS, SIGMAS, 1000)
        in_range = np.logical_and(data >= MINX, data <= MAXX)
        assert np.all(in_range), f"{100 * len(data[~in_range]) / len(data)}% outside range. {data[~in_range]}"
        self.kde = gaussian_kde(data)

    def logpdf(self, x):
        return np.log(self.kde(x.flatten()))


NORM = MockLnLFunc()


def mock_lnl(*args, **kwargs):
    sf_sample: Dict = kwargs.get('sf_sample')
    sf_sample = np.array(list(sf_sample.values()))
    return NORM.logpdf(sf_sample), 0


McZGrid.lnl = mock_lnl
mock_data = generate_mock_data(OUTDIR)

fig = plot_true()
_ = fig.suptitle('True LnL')

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[1], line 38
     34     sf_sample = np.array(list(sf_sample.values()))
     35     return NORM.logpdf(sf_sample), 0
---> 38 McZGrid.lnl = mock_lnl
     39 mock_data = generate_mock_data(OUTDIR)
     41 fig = plot_true()

NameError: name 'McZGrid' is not defined

## Exploratory Acquisition Function

res = train(
    model_type='gp',
    mcz_obs=mock_data.observations.mcz,
    compas_h5_filename=mock_data.compas_filename,
    acquisition_fns=[PredictiveVariance()],
    params=['aSF'],
    n_init=2,
    n_rounds=10,
    n_pts_per_round=1,
    outdir=f"{OUTDIR}/multi_explore",
    truth=dict(
        aSF=MIDX,
        lnl=mock_lnl(sf_sample={'aSF': MIDX})[0] * -1.0
    ),
    model_plotter=plot_res,
    noise_level=1e-3
)

## Explotative Acquisition Function

res = train(
    model_type='gp',
    mcz_obs=mock_data.observations.mcz,
    compas_h5_filename=mock_data.compas_filename,
    acquisition_fns=[ExpectedImprovement()],
    params=['aSF'],
    n_init=2,
    n_rounds=10,
    n_pts_per_round=1,
    outdir=f"{OUTDIR}/multi_exploit",
    truth=dict(
        aSF=MIDX,
        lnl=mock_lnl(sf_sample={'aSF': MIDX})[0] * -1.0
    ),
    model_plotter=plot_res,
    noise_level=1e-3
)


## Both Acquisition Function

res = train(
    model_type='gp',
    mcz_obs=mock_data.observations.mcz,
    compas_h5_filename=mock_data.compas_filename,
    acquisition_fns=[PredictiveVariance(), ExpectedImprovement()],
    params=['aSF'],
    n_init=2,
    n_rounds=10,
    n_pts_per_round=1,
    outdir=f"{OUTDIR}/multi_combined",
    truth=dict(
        aSF=MIDX,
        lnl=mock_lnl(sf_sample={'aSF': MIDX})[0] * -1.0
    ),
    model_plotter=plot_res,
    noise_level=1e-3
)

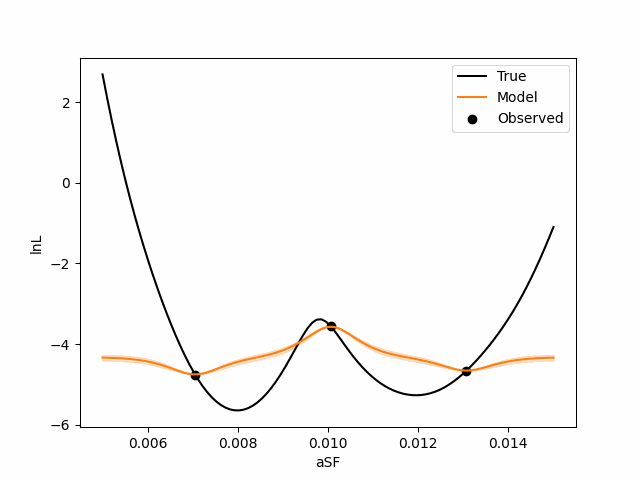

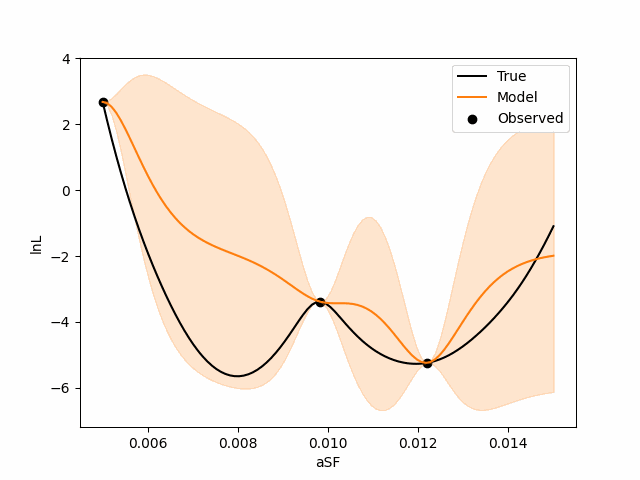

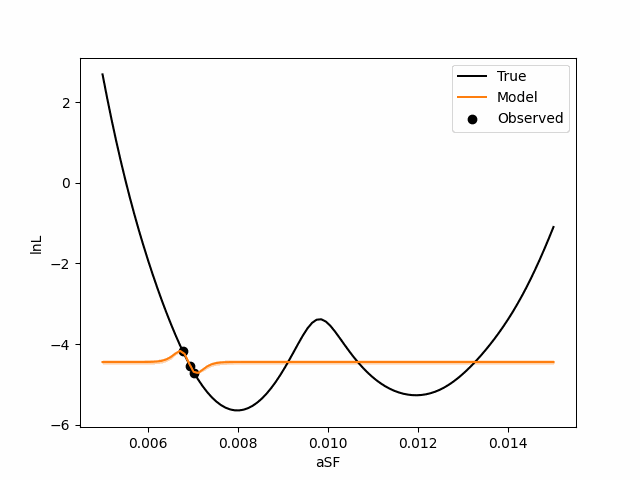

Exploratory Acquisition	Exploitative Acquisition	Combined Acquisition
